Name: High-Pressure Heavy Lifting Airbags
Brand: Qingdao Luhang Marine Airbag and Fender Co., Ltd
SKU: Airbags para elevação de objetos pesados
Price: 2,149.00 USD
Availability: InStock

Casa Produtos bolsa a ar de borracha marinha

High-Pressure Heavy Lifting Airbags

Detalhes do produto:

Lugar de origem:	Qingdao, China
Marca:	Luhang
Certificação:	ISO14409
Número do modelo:	Airbags para elevação de objetos pesados

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	1pcs
Preço:	Negociável
Detalhes da embalagem:	Embalagem do filme no palllet
Tempo de entrega:	10 ~ 15 dias de trabalho
Termos de pagamento:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Habilidade da fonte:	100pcs/mês

Contato

Descrição de produto detalhada

Nome do produto:	Airbags de levantamento pesado de alta pressão	Material:	Borracha mista com borracha natural e carbono
Cor:	Preto	Tamanho:	Ruquira do cliente
Uso:	Lançamento de navios, sacos de salvamento marítimo de borracha de navios	Embalagem:	Palete
Certificação:	CCS,ABS,BV,LR	Pressão de trabalho:	0,05MPA-0,25MPA

Heavy Lifting Marine Rubber Airbags

Heavy Lifting Marine Rubber Airbags are essential equipment for marine operations, mainly used in ship launching/landing, heavy cargo lifting and moving, as well as salvage and buoyancy assistance. Composed of outer rubber layer, inner rubber layer and synthetic tire cord layer, they boast high load-bearing capacity, enabling them to handle ships up to 10,000 tons and hundreds of tons of heavy goods. With excellent aging resistance and wear resistance, these airbags are flexible and reliable—they require no large machinery, are less restricted by sites, and can be reused, effectively shortening project cycles and reducing costs, thus widely recognized in the global shipbuilding and port construction industries.

High-Pressure Heavy Lifting Airbags 0

Solution Advantages

Saving

Moving caisson with airbags can cut off 70% budget comparing with trolley method.

Safe

Airbags have big contact area with transported object, the low reaction force is good for structure safety.

Convenient

Air bags can move structure strightly in line or steer structure to anywhere.

Specification and Model

You can choose the required diameter and effective length to meet your projects. The below specification only is our standard specification arrange. Other specifications high-pressure heavy lifting airbags also can be supplied upon clients' request.

Air Bag Parameter	High-pressure Heavy Lifting Airbags Size
Product Name	ship launching marine rubber airbags
Airbags Diameter (m)	0.8 ~ 2.5m, or customized diameter
Effective Length (EL)	6 ~ 25m, or customized length
Total Length (TL)	7 ~ 27m, or customized length
Loading Capacity	10 ~ 40 ton/m, or customized capacity
Model of Airbags	QP-ordinary, QG-high-bearing, QS-superhigh bearing

Heavy lifting airbags are categorized by the following three types according to the bearing capacity, per meter in length. We define the number of layers, which means the number of Synthetic-tyre-cord layers, in order to confirm the Safety Working Pressure. Another type is available upon clients' request.

Ordinary airbag - with 3, 4 or 5 layers of cord fabric.

High-bearing capacity airbag - with 6, 7, or 8 layers of cord fabric.

Superhigh-bearing capacity airbag - with 9, 10, or more layers of cord fabrics as a custom request.

Products details

Cord Fabric Air Inlet End Air Inlet End Air Tightness Swivel End

airbag Application

High-Pressure Heavy Lifting Airbags 6

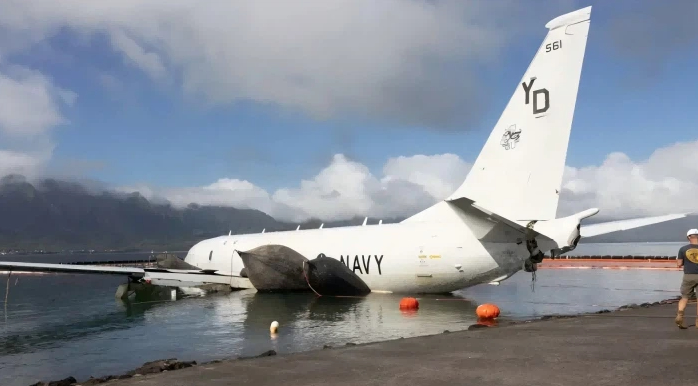

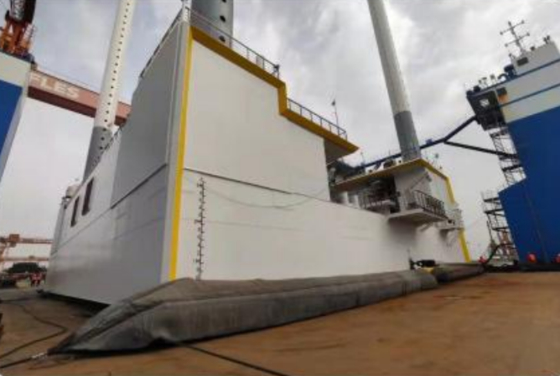

Ship Launching Ship Lifting Buoyancy Support

High-Pressure Heavy Lifting Airbags 9

Heavy Lifting Pipeline Buoyancy Airbag Marine Salvage

Airbag production process

How To Cooperate With Us?

Our address

Jidong Industrial Zone, Jimo City, Qingdao, China

Tel/Whatsapp/WeChat

+86 19063952909

E-mail

Fairy@luhanggroup.com

etiqueta:

Pessoa de Contato: Mr. Novid Liu

Telefone: 86-19063952008
